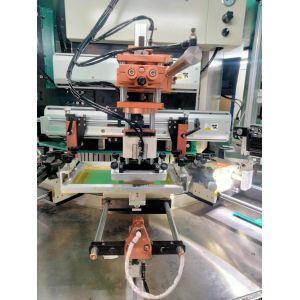

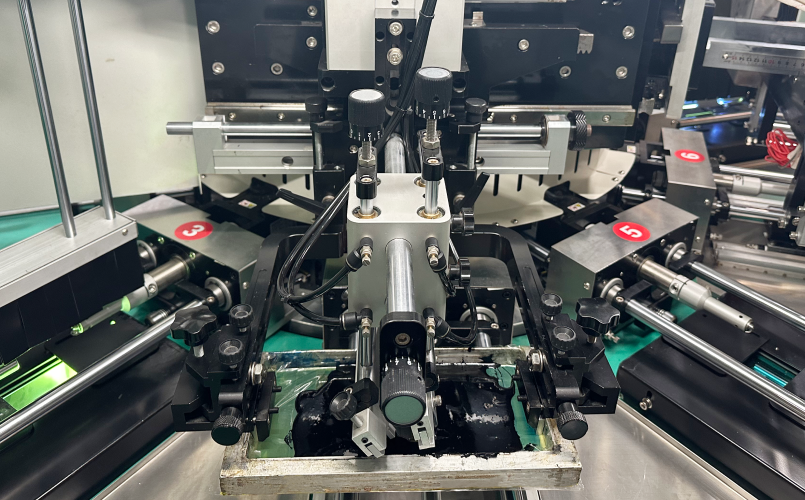

CNC Automatic 6-Color Printing Machine For Various Containers 45
Pcs/Min
Machine Feature
- SRS1669 is well-suited for screen printing UV inks of various
colors, as well as hot stamping and other decorative techniques, on
products like bottles, jars, caps, and items of other shapes—all
made from materials such as plastic, metal, and glass.
- This machine is specially designed for printing on small
containers, with a compact structure and minimal footprint.
- It features an integrated turntable design, allowing all printing
functions to be finished with the same set of fixtures. It offers a
printing accuracy of up to ±0.1 mm, and effectively avoids
scratching products.
- Driven by a digitally controlled servo motor, the machine supports
360-degree printing on products. Additionally, it comes with remote
management and service capabilities (compliant with Industry 4.0
standards).
- The machine uses electrical parts from well-known brands, plus a
PLC control system, an intuitive touchscreen, and wireless tablet
operation—all working together to guarantee reliable performance.
Optional Configuration
- Plasma surface treatment function. Hot stamping function. Visual
registration function.
- LED-UV curing function. Finished product quality inspection
function.
Technical Parameters
| Machine Model | SRS1669 |
| Printing Color | 6 Colors |
| Work Station | 16 |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
| Printing Speed | Up to 45 pcs/min |
Printing Sample
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals,
electronics, decorative products and other industries. Through the use of automatic printing
technologies, such as screen printing,pad printing, hot stamping, labeling, offset printing and digital
printing, it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of
products such as plastic, metal, glass
and ceramics.
Since 1994, Senny has always adhered to the business philosophy of
providing customers with high-quality products and services, exploiting the most advanced
electrical control components and materials for R&D and manufacturing, and continuously improving
the printing quality on various products to meet the increasingly extensive market requirements for
high-quality packaging.
The davantages of CNC Rotary screen printing machines:
- Saving space compared linear screen printing machine.
- 360° printing, with a printing accuracy of up to ±0.1 mm and high
color registration accuracy.
- All printing functions are completed using the same set of
fixtures, which causes minimal wear to the containers.
- Controlled by a PLC system, it is equipped with a wireless
touchscreen and supports remote management.
