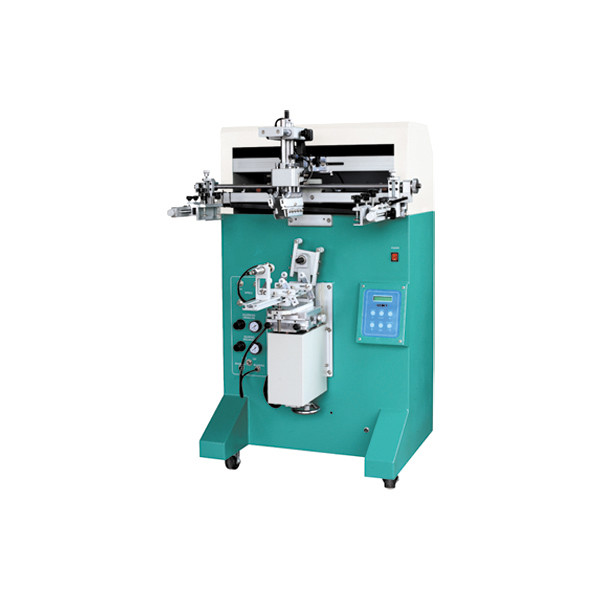

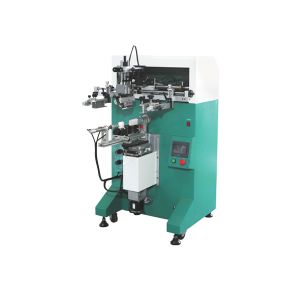

Cylindrical/Elliptical/Irregular Bottle And Container Servo-Drive Semi Automatic Screen Printing Machine Printer

Technical Characteristics　

This is a well designed and versatile machine. The SA400-D2 can screen print on cylindrical and Elliptical objects, and SA400-D4 can make screen print on irregular or complex shapes such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.

The SA400-D2/D4 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the SA400-D2/D4 the perfect all around universal screen printing press.

• • Pneumatic controlled with shock absorbers
• • Microprocessor controlled - PCB
• • Vertical part lift with height adjustment
• • Print stroke controlled with rodless cylinder
• • X/Y/R positioning ware-mounting table
• • Linear ball bearings on hardened shafts
• • Squeegee tilt, skew, and height adjustable
• • Screen frame angle & tilt adjustable
• • Synchronized bottle inflation system with regulator
• • Regulated squeegee pressure with pressure gauge
• • Floor levelers & casters
• • Foot switch controlled
• • Servo-drive, more stable

Application Scope:
It is mainly used for one color to multi color repeated screen printing of round/oval/irregular plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.

Technical Specifications:
SA400-D2 is for cylindrical and elliptical containers and SA400-D4 is for irregular/complex objects:

SA400-D2

SA400-D4

Printing samples


Customer's factory using our machine:

Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.

With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
